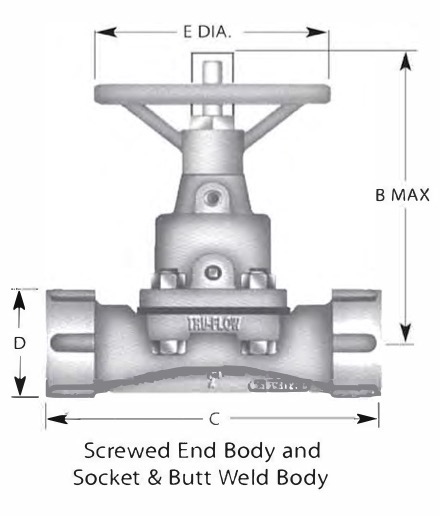

Screwed End – Valve General Dimensions (inches)
| Valve Size | A | B | C | Weight (lbs) | D | E | Body Pressure Rating (PSI) |
|---|---|---|---|---|---|---|---|
| 1/2 | 4.00 | 4.69 | 7.25 | 5.00 | 1.88 | 3.50 | 200 |
| 3/4 | 4.00 | 4.69 | 7.25 | 5.00 | 1.88 | 3.50 | 200 |
| 1 | 4.00 | 4.69 | 7.25 | 5.00 | 1.88 | 3.50 | 200 |
| 1 1/2 | 5.50 | 6.13 | 8.50 | 13.00 | 3.25 | 5.00 | 175 |
| 2 | 5.50 | 6.13 | 8.50 | 13.00 | 3.25 | 5.00 | 175 |
| 2 1/2 | 8.38 | 10.50 | 10.50 | 35.00 | 4.50 | 9.00 | 150 |
| 3 | 8.38 | 10.50 | 10.50 | 35.00 | 4.50 | 9.00 | 150 |
