Tru-Flow Valve Dimensions

Tru-Flow Straight Through (Long Body) ANSI B16.10 Valve Dimensions

Tru-Flow Valve Dimensions

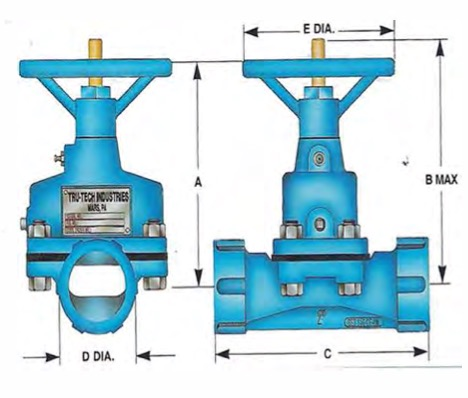

Screwed End – Valve General Dimensions (inches)

Valve SizeABCWeight (lbs)DEBody Pressure Rating (PSI)
1/24.004.697.255.001.883.50200
3/44.004.697.255.001.883.50200
14.004.697.255.001.883.50200
1 1/25.506.138.5013.003.257.00175
25.506.138.5013.003.257.00175
2 1/28.3810.5010.5035.004.509.00150
38.3810.5010.5035.004.509.00150
